Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: ZISA
  • Model Number: IA48G
  • Operating Temperature: -40°C to 65°C
  • Storage Temperature: -40°C to 85°C
  • Operating Humidity: 10% to 95% (non-condensing)
  • Storage Humidity: 5% to 95% (non-condensing)
  • data rate: down/up stream Up to 24/1.2 Mbps

Packaging & Delivery

Packaging Details: Hard packing
Delivery Detail: one week

Specifications

1.48-Port IPDSLAM
2.IP DSLAM has 4*GE uplink Port
3.IP DSLAM could stackable
4.IP DSLAM down/up stream Up to 24/1.2 Mbps

.

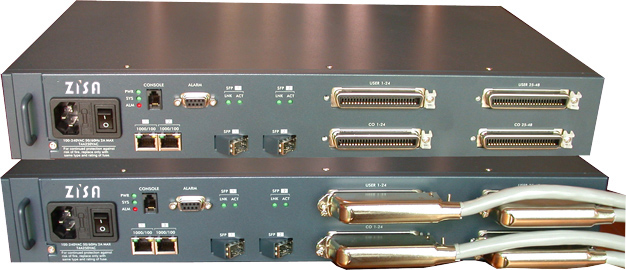

ZISA IA48G 48Ports ADSL2+ IP DSLAM






Description

The fastest speed with the most advanced and flexible DSL transport available, adjustable speeds for multiple service offerings down/up stream Up to 24/1.2 Mbps
- Application flexibility, with asymmetric data transport over a single copper pair (software configurable)
- Compliant with ITU, ANSI and ETSI standards
- Deployment from CO, cabinet or basement, multi-tenant units/multi-dwelling units


Features

 Better utilization of bandwidth
The IA48G is an IP-based DSLAM that terminates all the ATM circuits and converts traffic directly to deliver the most popular broadband IP services. It also provides a distinct advantage over typical ATM-based DSL access system due to the fact that IP is the natural approach for data transmission. It offers better bandwidth utilization, ease of use, as well as the low-cost advantage. With the highly compact and temperature-hardened design, simple installation and easy adaptation to local POTS/ISDN splitter requirements, the IA48G can be deployed in indoor and outdoor enclosures.

A robust, capable ADSL2+ solution
With this standalone ADSL2+ IP DSLAM, service providers can offer residential and business users access to high-bandwidth services on demand; such as streaming video, online gaming, multimedia applications and multiple video channels on a single network connection. The IA48G also offers medium/small businesses and home offices IP connectivity, VPNs, VLANs, high-quality video conferencing, long-reach Ethernet and legacy service interconnection, as well as asymmetric connectivity as fast as 24Mbps. The IA48G DSL solution for POTS/ISDN is a sophisticated ADSL2+ device wielding full compliance to existing standards, the latest DSL technology, compactness, low power consumption, integration with existing platforms and network managemeability. The combination of a superior line code, modern signal processing techniques and state-of-the-art ASIC design add up to a compact, energy-saving ADSL2+ modem with excellent performance, transparent backward ADSL/ADSL2 compatibility, robust interference resistance and flexible configurability.


Power Requirements
  • Voltage: 220V AC or -48 VDC (-36 ~ -72VDC)
  • Power: max. 90Watts
Physical Specifications
  • 19”  Rack-mountable
  • Force cooling by FAN
  • Temperature hardening
  • Built-in splitter
  • Dimension: 442.7 (W)  x 250 (D) x 66 (H)mm
  • Weight: 7.2 Kg
Environmental Specifications
  • Operating Temperature: -40°C to 65°C
  • Storage Temperature: -40°C to 85°C
  • Operating Humidity: 10% to 95% (non-condensing)
  • Storage Humidity: 5% to 95% (non-condensing)
